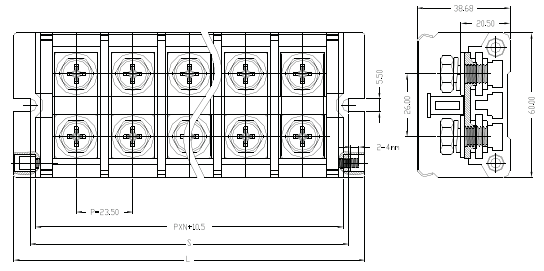

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長L |
75,5 |
99 |
122.5 |
146 |
169.5 |
193 |
216.5 |
240 |
263.5 |
287 |
310.5 |
334 |
375.5 |
381 |
404.5 |
|
|
固定孔距S |
62 |
85.5 |
109 |
132,5 |
156 |
179.5 |
203 |
226.5 |
250 |
273,5 |
297 |
320.5 |
344 |
367,5 |
391 |
|
端子間距(Center Spase) |
23.5 0mm |
|
壓線範圍(Wire Range) |
38mm2(Max) |
|
螺釘扭距(Screw Torque) |
40 Ibf. in |
|
額定電流(Rated Current) |
600V,100A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M8,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
